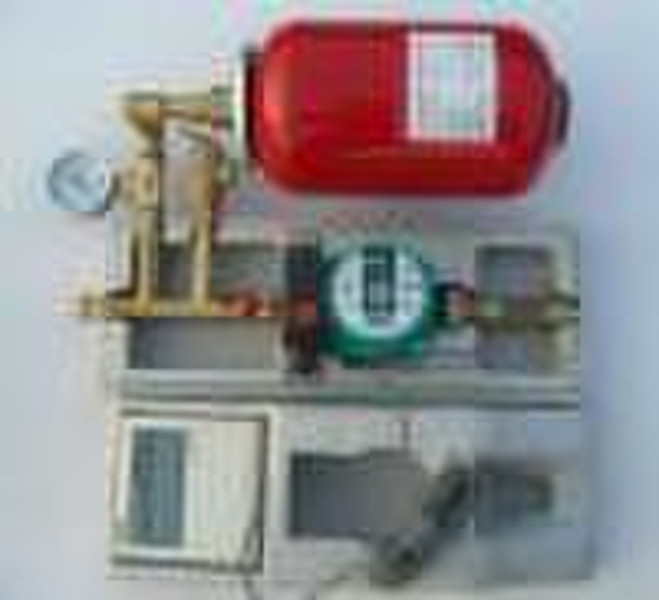

solar work station(CHCH)

solar/ solar water heater/ solar work station accessories The Working station includes seven parts as follow: 1.Expansion case (Made in Italy) 2.Check valve 3.Circulation pump(Made in Germany) 4.Intelligent controller 5.Pressure guage 6.Safety valve 7.Flowmeter Working Principle: Adopt the fourth era solar collector--- Sectional Metal Heat-pipe Collector, transfer the solar radiate into the heat energy. Use one kind of new solar collector--- Sectional Metal Heat-pipe Collector, with the high efficiency of heat absorbing, fast transfer the solar energy into the heat energy. The temperature of the sensor is higher than the temperature of set point in the circulation water tank , the controller start and the circulation pump running. The intelligent controller and circulation pump start to work when the temperature of the sensor is higher than the set temperature of the circulation water tank. The circulation pump make the medium circulate in the circulation pipe. The medium circulate in the circulation pipe with the circulation pump. The heat that absorb by the solar collector transfer into the storage water tank through the heat exchanger. When the difference in temperature is less than the set point, the circulation pump is stopped. The circulation pump is stopped when the temperature difference lower than the set temperature. When the water temperature arrive the max of the set point, the controller will be close the circulation pump. The controller will close the circulation pump when the water temperature arrive the max set temperature. Performance and features: The collector and water tank is separated, running with high pressure. Working pressure: ≤ 0.6Mpa Anti-hail Ability: resistance the hailstone with diameter of 25 mm Adopt the controller that special in solar water heater ,automatic running with high pressure Adopt sectional metal heat-pipe collector , no water in vacuum tube ,if one of the vacuum tube is broken, no effect to the whole system. Separated design, beautiful look. The collector can be installed on the veranda, south wall, slope roofing, awning or flat roof. The pressure water tank can be installed anywhere of the room. The module design, unified with the building. Model Support capability of water (L)Capability of expansion case(L)Volume(m3)Loading20/40pcsSJK-100-WS 10050.12216/432SJK-150-WS 15050.12216/432SJK-200-WS 20080.14185/270SJK-250-WS 25080.14185/270SJK-300-WS 300120.19136/272
